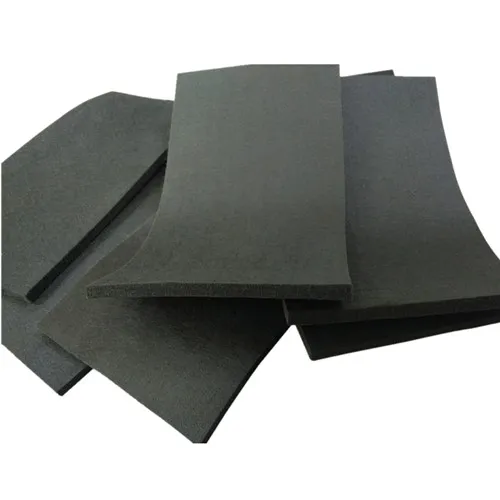

PAN Graphite Felt

Nrog polypropylene thiab Base graphite xav Raws li lub hauv paus rau cov ntaub ntawv, Ua los ntawm cov txheej txheem tshwj xeeb kub graphitization, muaj kev ua tau zoo xws li Lub Teeb Nyhav, Cov ntsiab lus Carbon siab, tsis kam cauterization, Resistant corrosion, siab purity, siab kub tsis volatile, me coefficient. ntawm thermal conductivity, Tsis Deforming ntawm qhov kub thiab txias. Nws yog cov khoom siv thermal rwb thaiv tsev zoo.

PAN Graphite muaj qhov zoo oxidation tsis kam. Cov qauv ntawm cov ntaub ntawv carbon tsis muaj cov graphitization yog cov txheej txheem tsis sib haum xeeb, thiab txhua yam ntawm cov qauv ntawm qhov tsis xws luag muaj nyob rau hauv uas ua rau nws muaj ib tug lager theem spacing, yog li, nws yooj yim rau kev txom nyem los ntawm oxygen atom thiab oxidation. Tab sis cov graphite xav tias, tom qab kev kho kub kub, muaj cov lattice zoo meej thiab txiav txim siab peb qhov kev teeb tsa zoo heev txo qis qis, nws pab cov khoom kom tsis txhob muaj kev tawm tsam ntawm oxygen atom thiab txhim kho oxidation kuj zoo heev.

Index



Qhov ceev: {{0}}.13 ~ 0.15g/cm³
Cov pa roj carbon: ntau dua lossis sib npaug rau 99% wt
Tshauv: ± 100ppm
Thermal conductivity: 0 08-0.14w/mk
Ua haujlwm kub: 2500 degree
Hluav taws xob tiv taus: 1.60 ~ 2. 00 × 10-3Ωm
Loj: Cov neeg thov kev thov
Qhov loj me:
Dav: 1200mm lossis 1000mm
Thickness: 10mm (mormal), 8mm, 5mm

1. Tsawg thermal conductivity thiab cov cua kub tshwj xeeb pab txhim kho lub suab rwb thaiv tsev thiab txuag hluav taws xob noj thiab txo lub sijhawm ntawm qhov kub thiab txias thaum cov khoom siv khiav zoo.

2. Tsis adsorbed noo noo ces pab kom txo tau lub sij hawm raws li extract lub tshuab nqus tsev.

3. Daim ntawv thov kub siab txog 2500 degree hauv lub tshuab nqus tsev vacuum thiab mus txog 3000 degree inert.

4. High purity uas tsis muaj kuab paug rau cov khoom kho.

5. Yooj yim rau kev ua yuav raug txiav rau hauv qhov loj los ntawm ib rab riam me me.

Daim ntawv thov



1.*Aerospace kev lag luam: Kub isostatic txheej txheem rauv, kho cua sov, sintering, brazing thiab autoclave rauv. * Kev lag luam semiconductor: Silicon puller thiab gallium arsenate tsim.
2.* Hlau kho cua sov: kho cua sov rauv, thiab sintering, brazing rauv.
3.* Carbon fiber ntau siv: Carbonizing rauv thiab graphitizing rauv nrog induction lossis tsis hnov ​​lus.
4.* Composite fabrication: CVD los yog CVL equipments rau deposition los yog infiltrantion los ntawm pyrolytic carbon thiab pyrolytic graphite los yog lwm yam tsim nyog hais.
5.* Cov khoom siv hluav taws xob: Siv rau vanadium lossis lwm yam redox flow buttery.

• Cov khoom siv thermal zoo tshaj plaws ntawm ntau qhov kev ua haujlwm kub

• Kev ruaj ntseg siab nrog tsawg shrinkage

• Yooj yim thiab yooj yim los tuav

• Tsawg ceev thiab thermal mass

• Kev ua haujlwm zoo dua hauv cua sov thiab cua txias

• Tsawg thermal conductivity

• Kev tsis sib xws thoob plaws hauv cov khoom

• Muaj nyob rau hauv qhov ntev, dav, thiab tuab

• Yooj yim txiav kom haum raws li qhov yuav tsum tau muaj me me

• Muaj peev xwm ua tau halogen purified kom txo impurity theem rau hauv ppm ntau

PAN graphite xav tau zoo kawg nkaus thiab muaj peev xwm tiv taus qhov kub thiab txias, ua rau nws zoo tagnrho rau kev siv hauv kev lag luam xws li aerospace thiab electronics. Qhov thib ob, nws yog cov tshuaj tiv thaiv corrosion heev, txhais tau tias nws tuaj yeem siv rau hauv qhov chaw hnyav yam tsis muaj kev puas tsuaj. Tsis tas li ntawd, qhov xav tau yog lub teeb yuag thiab yooj yim rau kev ua haujlwm nrog, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg tsim qauv thiab cov kws tsim qauv tsim los tsim cov khoom sib txawv thiab cov khoom sib txawv.

Lwm qhov zoo dua ntawm PAN graphite felt yog nws cov thermal conductivity. Cov khoom muaj qhov tsis tshua muaj thermal tsis kam, txhais tau tias nws muaj txiaj ntsig zoo ntawm kev hloov cua sov. Qhov no ua rau nws zoo meej rau kev siv nyob rau hauv cov ntaub ntawv uas cov cua kub dissipation yog qhov tseem ceeb, xws li hauv hluav taws xob thiab hluav taws xob.

Tsis tas li ntawd, PAN graphite xav tau kuj yog eco-friendly thiab ruaj khov. Cov txheej txheem tsim khoom siv cov ntaub ntawv uas tau yooj yim dua dua tshiab, thiab qhov kev xav ntawm nws tus kheej yog qhov rov ua dua tshiab. Qhov no yog qhov kev txiav txim siab tseem ceeb rau kev lag luam nrhiav kom txo lawv cov kev cuam tshuam ib puag ncig thiab txhawb kev coj ua kom ruaj khov.

Hauv kev xaus, qhov zoo ntawm Panji xav tias graphite tsis tuaj yeem overstated. Los ntawm nws cov durability thiab tsis kam mus rau tshuaj corrosion, mus rau nws thermal conductivity thiab eco-friendliness, cov khoom no yog ib tug meej kev xaiv rau ntau yam kev lag luam daim ntaub ntawv.
